Description

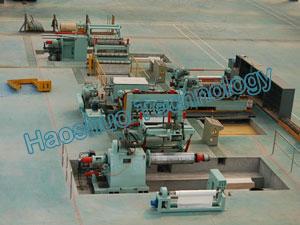

This slitting line is used for slitting raw material coils into strips. This machine can slit raw material coils into specific width. Our company has series of slitting lines, with thickness of 0.1-25mm and width up to 2500mm. The slitting line normally includes loading trolley, decoiler、guiding device (including lead head, press head, shovel head), coil head shear, centering and calibrating device, slitting machine, scrap rewinder, pre-distribution and tensioning machine, recoiler, and unloading trolley. And the main components are decoiler, slitting machine, scrap rewinder, recoiler, and PLC control system.

Properties

Compared with similar products, this slitting line is characterized by high speed and high precision. And its speed can reach 250m/min and the strip precision can be up to 0.02mm.
Our slitting line has satisfied relevant requirements of ISO9001:14000 and CE, etc.
And our slitting line has reached the leading domestic level and it is a famous brand in China.

Operation and Points That Need Attention

1. Operator number should be 2 to 5 workers, and other people shouldn't stand near it.
2. Around the equipment, there should be yellow characters to indicate off-limits place on railings.
3. Please do well lubrication for gears and chains.
4. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.
5. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
6. Operators shall not stand on the coil when machine running.
7. Do not move coil directly by hand.
8. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.
9. Do not remove or change circuit. In case has problem, please consult professional technicians.
