Double Layer Forming Machine

Description

This double layer forming machine owns two independent forming moulds, and it is suitable for producing colored steel plate and roof panel. It is mainly composed of decoiler, roll former, cutter, hydraulic pump station, product table and control cabinet, etc. This machine adopts up and down forming type, and online automatically hydraulic cutting. It is fully automatically controlled by PLC. The most favorable points of this equipment are that it saves cost and occupying places, thus greatly improving its production competitiveness power.

Properties

This machine is fully automatically controlled by PLC and operated by touch screen. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.

Since this equipment can manufacture panels of two different shapes, it largely saves production costs and greatly improves production competitiveness.

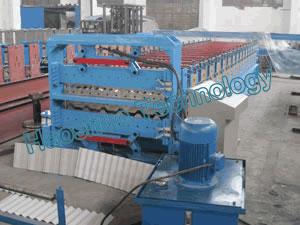

Double Layer Forming Machine

Operation and Points That Need Attention

The double layer forming machine is totally controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first before carrying out relevant operation.

Maintenance and Lubrication

Users should regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And forming rollers and machine should be kept clean.

Transportation and Packaging

This kind of machine should adopt sea shipping by container and nude packing.

Parameters of the Machine

1. Suitable material: coating rolled steel, galvanized sheet, etc.
2. Suitable thickness: 0.3-0.8mm or other thickness
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 12-15m/min
5. Main motor power: 5.5Kw (depending on specific requirements of users)
6. Cutting mode: hydraulic cutting
7. Hydraulic station power: 3Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler

As a professional manufacturer and supplier of double layer forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (guardrail forming machine, light steel frame forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, bending machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of double layer forming machine, please contact us.
