Foaming Aluminum Shutter Forming Machine
Description

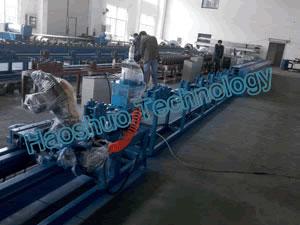

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus continuous automation production of foaming roller shutter door is achieved. This machine mainly includes decoiler, roll former, PU foaming machine, punching and cutting device, product table, and control cabinet, etc.Properties
This machine is fully automatically controlled by PLC, and operated by touch screen. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.Operation and Points That Need Attention
The foaming aluminum shutter forming machine is totally automatically controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing.
If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.
Maintenance and Lubrication
Users have to regularly add lubricant oil to chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.Transportation and Packaging
This kind of machine should adopt sea shipping by container and nude packing.Parameters
1. Suitable material: coating rolled steel, aluminum coil, etc.2. Suitable thickness: 0.3-0.5mm
3. Forming specifications: 37,42,55,65,77,90,98, etc
4. Forming speed: 10-15m/min
5. Main motor power: 3-5.5Kw (depending on specific requirements of users)
6. Cutting mode: pneumatic flying saw tracking cutting
7. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
8. Optional accessories: hydraulic uncoiler
As a professional manufacturer and supplier of foaming aluminum shutter forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (iron rolling shutter forming machine, stud & track forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, bending machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of foaming aluminum shutter forming machine, please contact us.
