Home » Products » Cut to Length Line

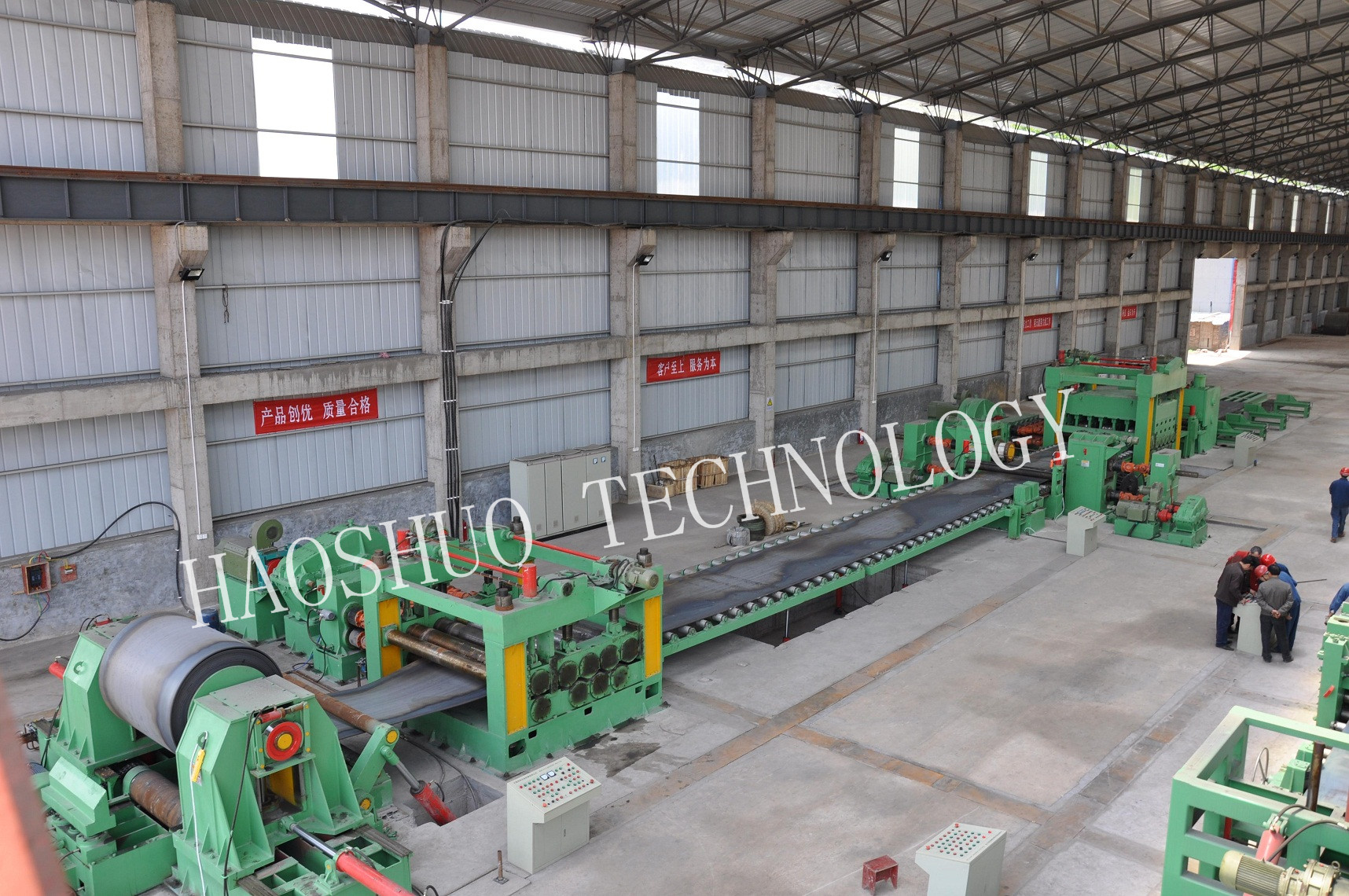

Steel Coil Cut to Length Line

This steel coil cut to length line is used for leveling and cutting to length of panels. We have series of cut to length lines, with thickness from 0.2 to 25mm and width up to 3000mm. The cut to length line includes decoiler, guiding device (lead head, press head, shovel head), pinch roll for feeding, centering and calibrating device, leveler, cut to length machine, stacker, and unloading trolley. And its main components are decoiler, leveler, cut to length machine, stacker and PLC control system.

1. Compared with similar products, our cut to length line enjoys high speed and excellent precision.
2. We have professional debugging team, and they can deal with all problems in machine operating process. Besides, we have rich experience of debugging abroad.
3. Our line has been up to the leading domestic level, and our company has quite rich experience in producing the cut to length line.
4. The steel coil cut to length line has reached relevant standards of ISO9001:14000, CE, and SGS, etc.

Operation and Attention
1. Operator number should be 2 to 5 workers, and other people should keep away from this equipment
2. Around the machine, there should be yellow caution color to indicate off-limits place
3. Please do well lubrication for gears and chains.
4. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.
5. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
6. Operators shall not stand on the coil when machine running.
7. Do not move coil directly by hand.
8. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.
9. Do not remove or change circuit. In case of any problem, please consult professional technicians.

Packaging and Transportation
This steel coil cut to length line should adopt sea shipping by container. If there is no special requirement, this machine usually utilizes nude packaging, with cable wire and wooden block fastening it. All gadgets should be placed in accessory steel box.

Maintenance and Lubrication
1. Check machine units whether loosen or damaged and check electrical parts, hydraulic parts, and pneumatic parts whether abnormal after work finished. If so, should adjust or repair immediately. 2. Check the oil pipes are smooth, regular filling oil. (lubricating list) 3. Cut off main power, clean up machine units after work finished. 4. Regularly inspect machine to ensure proper operation.

Parameters of Steel Coil Cut to Length Line

1. Precision high speed cut-to-length line, nonstop cutting
Series Material thickness/mm Material Speed/mpm
1 0.2-2 800-1600 0-75
2 0.5-3 800-1600 0-75
2. High speed cut to length line, stop to cut
Series Material thickness/mm Material speed/mpm
1 0.2-2 500-1600 0-70
2 0.3-3 500-1600 0-71
3 1.0-4 500-1600 0-72
4 1.5-6 500-1800 0-73
3. Series of Cut to length lines
Series Material thickness/mm Material Mpeed/mpm
1 0.2-2 500-1600 0-30-40
2 0.5-3 500-1800 0-30-40
3 1.0-4 500-2000 0-30-40
4 1.5-6 500-2200 0-27-40
5 2.0-8 500-2500 0-27-40
6 2.0-10 500-2500 0-27-40
7 3.0-12 1000-2500 0-27-40
8 4.0-16 1000-2500 0-26
9 5.0-20 1800-2500 0-22
10 6.0-22 1800-2500 0-22
11 8.0-25 1800-2500 0-21
12 8.0-30 1800-2500 0-17
4. Thick plate leveling machine
Series Material thickness/mm Material speed/mpm
1 4.0-16 1000-3200 0-18
2 8.0-25 1000-3500 0-18
3 9.0-32 1000-3500 0-12
4 12-45 1500-3600 0-9
5 16-60 1500-3600 0-9
6 20-80 1500-3600 0-8
