- Radiator Production Line
This radiator production line can be used in producing different specification radiators, with width among 535, 520, 480, 460, 320, 310 and center distance more than 500mm.
This machine has high automation degree, high forming quality, and high efficiency. The property of this machine has reached world-class quality....
- Transformer Core Cutting Machine
The transformer core cutting machine is fully automatic NC controlled machine, the cutting shapes and sizes can be chosen and set on touch screen. The standard configuration of the machine has two punch and two cut, there are 45 degree and 135 degree cutting, V notching and hole punching. The ....
- Silicon Steel Slitting Line
1. This slitting line is used for slitting silicon steel coils or CRGO coils. Silicon steel slitting line is necessary equipment in the manufacturing of transformer industry and related electric industries.
2. The slitting thickness of automatic steel coil slitting machine ranges from 0.23mm to 0.5mm ...

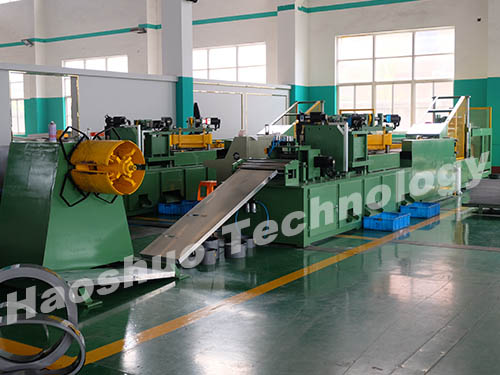

- CRGO Core Cut to Length Line
1.This production line can cut automatically silicon steel coil to certain length with various shapes. It is necessary production equipment in transformer manufacturing...
- Amorphous Core Cutting Machine
The amorphous core cutting machine is mainly used for automatic cutting and stacking of amorphous alloy core. This amorphous alloy core cutting line adopts high-capacity Mitsubishi PLC control mode, servo execution system, color touch-screen HMI and high-precision mechanical transmission ...
- Corrugated Fin Forming Machine
This forming machine can press fold and bend the corrugated fins on panel with required preset dimensions. This forming machine is the most practical equipment for producing transformers of wave-shape oil tank in transformer industries...
- Corrugated Fin Welding Machine
This machine is a special welding machine used in transformer manufacturing industry. Corrugated fin automatic welding machine adopts air cylinder to clamp the fins. Driven by DC speed motor and weld the fins, the welding gun can move from top to bottom through ball screw...

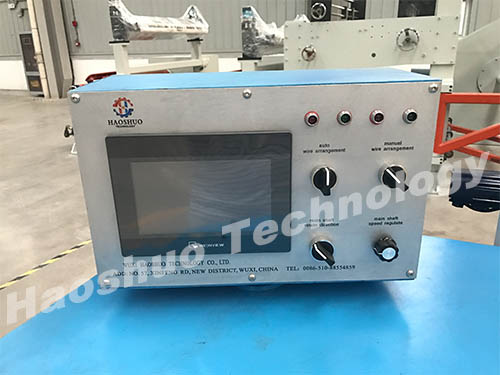

- Automatic Coil Winding Machine
This automatic coil winding machine is used to make HV winding coils for transformers of different capacities. Our automatic coil winder adopts automatic wire-arrangement and tension technology. This automatic coil winding machine is suitable for middle and small distribution transformers, inductors...

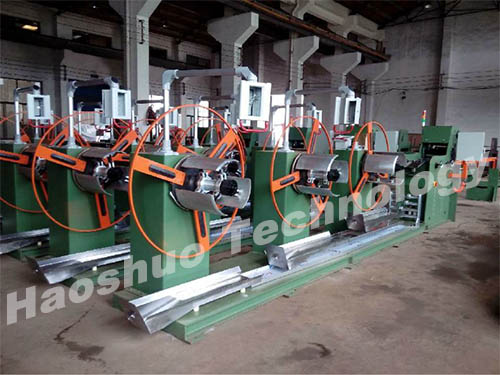

- Coil Winding Machine
This kind of coil winding machine can be applied to a single wire, sheath wires, parallel wires, telephone lines, anti-aging wires, etc. The suitable application is transformer and electric industries. This winding machine can be divided into LV winding machine and HV winding machine with horizontal and vertical type...
- Foil Winding Machine
This kind of foil winding machine is designed for winding aluminum and copper foil type coils in transformer and electric apparatus. There are LV foil winding machine and HV foil winding machine, which used for making low voltage and high voltage coils for power transformers...

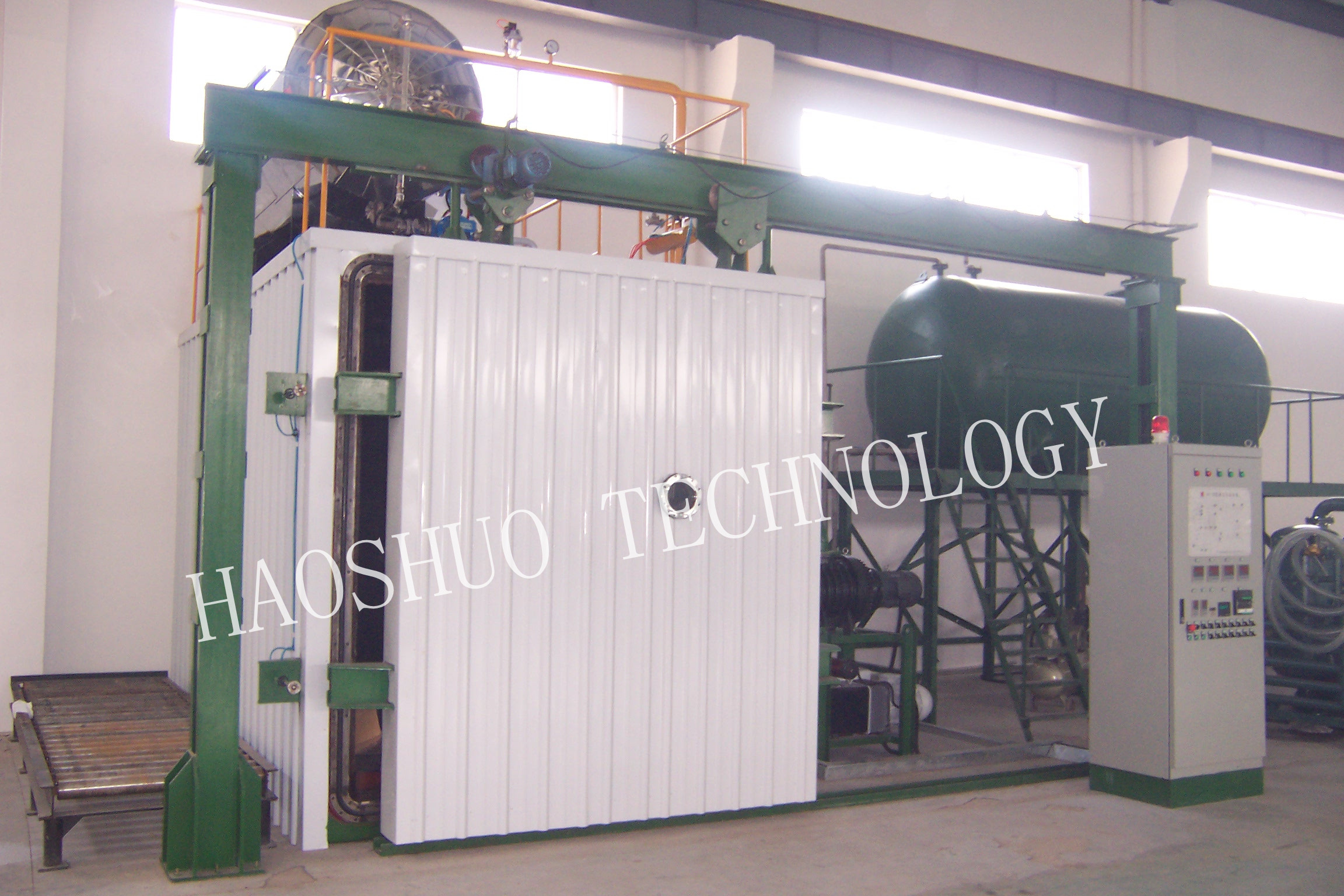

- Vacuum Drying Oven
The vacuum drying oven is designed for drying the parts and elements of transformers, reactor and related electrical products. The equipment adopts variable pressure drying principle suggested by Dr. Moll from Germany...

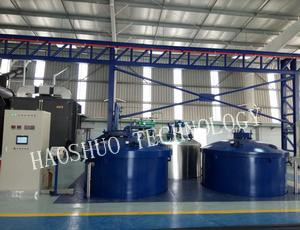

- Vacuum Oil Filling Equipment
This equipment is used to fill the transformer oil in vacuum condition (drying function can be added according to client’s requirement). It is widely used for amorphous transformers, HV oil immersed transformers, HV bushings and capacitors, etc. The plant can automatically running and quantitative oil filling....
- Vacuum Pressure Impregnation Equipment
This kind of VPI equipment is mainly application of insulation processing for electrical products, such as high voltage motor, generator, H class dry type transformer, power capacitor, cable insulation, and motor repairing, etc...

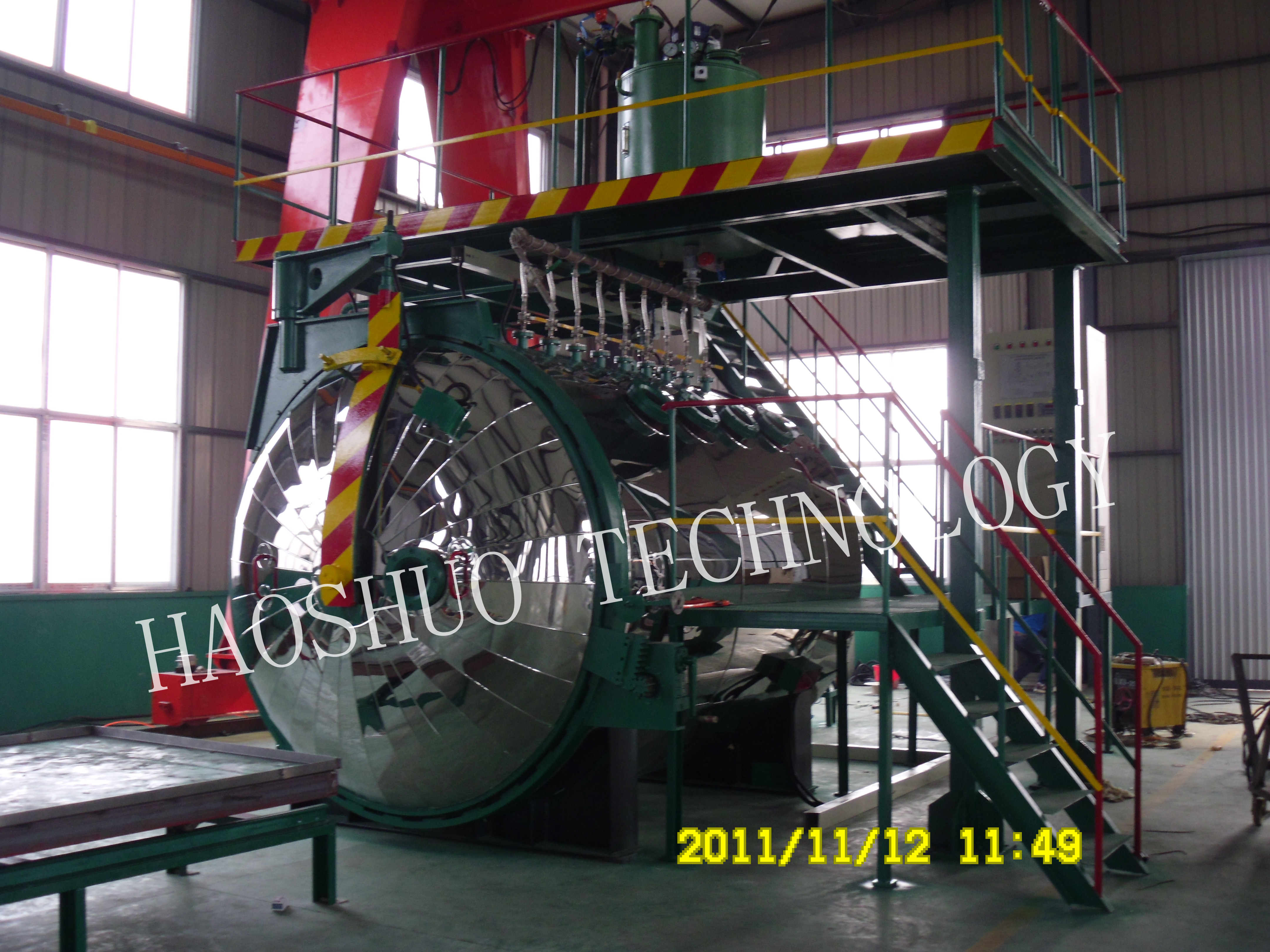

- Epoxy Resin Vacuum Casting Machine
The vacuum casting machine is specially used in the production of dry type transformer, bushings, dry type reactor, high voltage switch insulation, and related electrical products. It mainly consists of material tank, mixing tank, measuring device, vacuum casting tank, vacuum pump system, heating system, control system, etc...

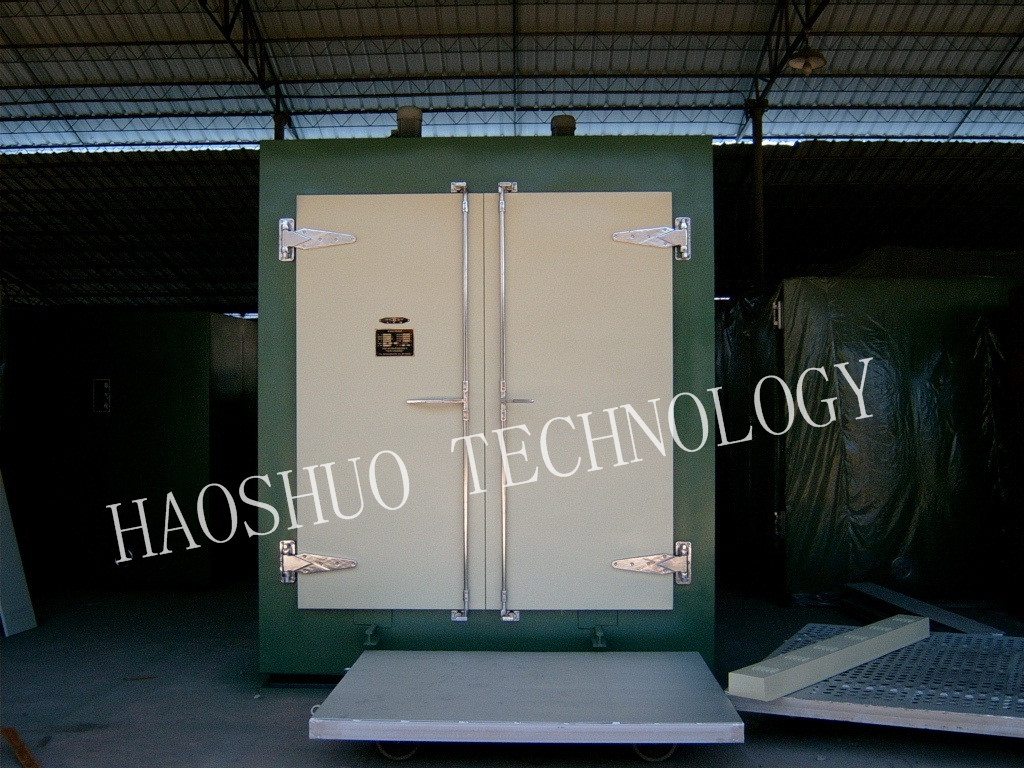

- Drying Oven
This oven can be widely used in the production of transformer industry, transformer coil impregnation drying (solidifying) process and epoxy pouring solidifying process, transformer active parts drying etc. Drying oven features high precision temperature control, easy operation, energy saving, safety and high reliability, etc....

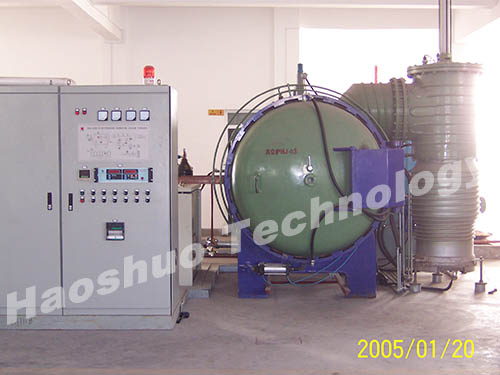

- Vacuum Annealing Furnace
This vacuum annealing furnace is mainly applied for annealing different kind of transformer cores such as CRGO silicon cores, amorphous cores, etc. The purpose of this heat treatment furnace is to release inner stress and improve core permeability, thereby reducing transformer iron losses. This vacuum ...
