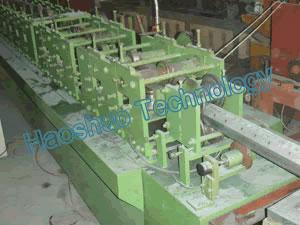

Octagon Pipe Forming Machine
Description
This octagon pipe forming machine is mainly used in manufacturing roller shutter doors and window roller shutters. Here, we can manufacture octagon pipe forming machine with 40mm, 60mm, and 80mm, thus our products are suitable for rolling shutter blinds with different specifications.The main components of this octagon pipe forming machine are decoiler, flattener, roll former, cutting device, hydraulic pump station, product table, and control cabinet, etc.
Properties
The frame of the octagon pipe forming machine adopts formed steel construction and after welded, this machine utilizes integrity processing technology. It enjoys rational and beautiful structure, strong carrying ability, and stable and reliable performance. The forming roller of this machine is designed by professional technicists. The machine undergoes high precision processing and heat treatment before chromeplate. So this machine is characterized by high forming precision and long service life.The main components of this device are from products of famous brands, thus ensuring the whole performance and quality. Controlled by PLC, this machine is easy to operate, thus workers without special training can operate it very well. This equipment is convenient to debug, and enjoys low noise and high efficiency.
Operation and Points That Need Attention
The octagon pipe forming machine is totally controlled by PLC. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.Maintenance and Lubrication
Users should regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.Transportation and Packing
This kind of machine should adopt nude packaging and container transport.Parameters of the Machine
Suitable material: galvanized coils and general carbon steel, etc.Suitable thickness: 1-1.2mm
Forming specifications: 40mm, 60mm, 80mm
Forming speed: 10-15m/min
Main motor power: 5.5-11Kw (depending on specific requirements of users)
Cutting mode: pneumatic flying saw tracking cutting
Cutting machine power: 11Kw
Control system: PLC systems from Mitsubishi and Panasonic products, famous brand electrical appliances
Optional accessories: hydraulic uncoiler
As a professional manufacturer and supplier of octagon pipe forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (such as stud & track forming machine, light steel frame forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, curving machine, and auto-stacker, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of octagon pipe forming machine, please contact us.
