  • 3X1600mm High Speed High Precision Cut to Length Line
    This steel coil cut to length line is used for leveling and cutting max. 3mm thickness 1600mm width steel coils into required length steel plates. The production line has the feature of high precision, topping stabilization, and excellent performance....
  • 6X2000mm Steel Cut to Length Line
    This steel coil cut to length line is used for leveling and cutting max. 6mm thickness 2000mm width steel coils into required length steel plates. The production line has the feature of high precision, topping stabilization, and excellent performance...
  • 12X2000mm Thick Plate Cut to Length Line
    This steel coil cut to length line is used for leveling and cutting max. 12mm thickness 2000mm width steel coils into required length steel plates. The production line has the feature of high precision, topping stabilization, and excellent performance...
  • Steel Coil Cut to Length Line
    This leveling cut to length line is used for leveling and cutting to length of panels. We have series of cut to length lines, with thickness from 0.2 to 80mm and width up to 3600mm. The cut to length includes decoiler, guiding device (lead head, press head...

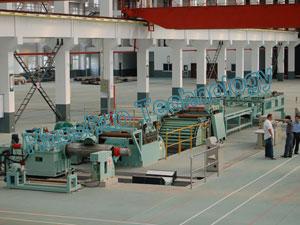

Cut to Length Line

Description

This leveling cut to length line is used for leveling and cutting to length of panels. We have series of cut to length lines, with thickness from 0.2 to 80mm and width up to 3600mm. The cut to length includes decoiler, guiding device (lead head, press head, shovel head), pinch roll for feeding, centering and calibrating device, leveler, cut to length machine, stacker, and unloading trolley. And its main components are decoiler, leveler, cut to length machine, stacker and PLC control system.

Properties

Compared with similar products, our cut to length line enjoys high speed and high precision. Our speed can reach 250m/min and our strip precision can be up to 0.02mm. Besides, this cut to length line enjoys high quality and high efficiency. We have professional debugging team, and they can deal with all problems in machine operating process. Besides, we have rich experience of debugging abroad.
Our line has been up to the leading domestic level, and is a famous brand in China. Besides, our company has quite rich experience in producing the cut to length line.
Cut to Length Line

Our cut to length line has reached relevant standards of ISO9001:14000, CE, and SGS, etc.

Operation and Points That Need Attention

1. Operator number should be 2 to 5 workers, and other people shouldn't stand near it.
2. Around the equipment, there should be yellow characters to indicate off-limits place on railings.
3. Please do well lubrication for gears and chains.
4. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.
5. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
6. Operators shall not stand on the coil when machine running.
7. Do not move coil directly by hand.
8. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.
9. Do not remove or change circuit. In case has problem, please consult professional technicians.

Packaging and Transportation

This cut to length line should adopt sea shipping by container. And if there is no special requirement, this machine usually utilizes nude packaging, with cable wire and wooden block fastening it. All gadgets should be placed in accessory box.

Maintenance and Lubrication

1. Check machine units whether loosen or damaged and check electrical parts, hydraulic parts, and pneumatic parts whether abnormal after work finished. If so, should adjust or repair immediately.
2. Check the oil pipes are smooth, regular filling oil. (Lubricating list)
3. Cut off main power, clean up machine units after work finished
4. Regularly inspect machine to ensure proper operation.

Parameters

1. Precision high speed cut-to-length line, nonstop cutting
Series Material Thickness/mm Material width Speed/mpm
1 0.2-2 800-1600 0-75
2 0.5-3 800-1600 0-75
2. High speed cut to length line, stop to cut
Series Material Thickness/mm Material width Speed/mpm
1 0.2-2 500-1600 0-70
2 0.3-3 500-1600 0-71
3 1.0-4 500-1600 0-72
4 1.5-6 500-1800 0-73
3. Series of Cut to length lines
Series Material Thickness/mm Material width Speed/mpm
1 0.2-2 500-1600 0-30-40
2 0.5-3 500-1800 0-30-40
3 1.0-4 500-2000 0-30-40
4 1.5-6 500-2200 0-27-40
5 2.0-8 500-2500 0-27-40
6 2.0-10 500-2500 0-27-40
7 3.0-12 1000-2500 0-27-40
8 4.0-16 1000-2500 0-26
9 5.0-20 1800-2500 0-22
10 6.0-22 1800-2500 0-22
11 8.0-25 1800-2500 0-21
12 8.0-30 1800-2500 0-17
4. Thick plate leveling machine
Series Material Thickness/mm Material width Speed/mpm
1 4.0-16 1000-3200 0-18
2 8.0-25 1000-3500 0-18
3 9.0-32 1000-3500 0-12
4 12-45 1500-3600 0-9
5 16-60 1500-3600 0-9
6 20-80 1500-3600 0-8

As a professional cut to length line manufacturer and supplier, based in China, Wuxi Haoshuo Technology Co., Ltd provides many other types of forming machines, such as roll forming machine (such as z purlin forming machine, octagon pipe forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cold rolling mill radiator production line, curving machine, and bending machine, etc. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of cut to length line, please contact us.
