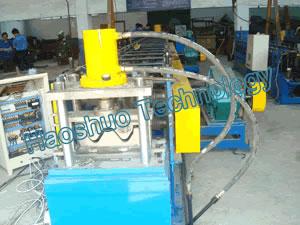

Guardrail Forming Machine
Description
This guardrail forming machine has two kinds of specifications: 2-wave guardrail forming machine and 3-wave guardrail forming machine. The equipment is mainly composed of decoiler, punching unit, roll former, cutting device, product table, and control cabinet, etc.This machine adopts automatic PLC control. The guardrail forming machine enjoys high quality forming and high speed production.
The processing flow of this machine includes: decoiling—flattening —punching—forming –cutting
Properties
This machine adopts automatic PLC control and touch screen operation. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.Operation and Points That Need Attention
The guardrail forming machine is totally automatically controlled by PLC.
Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.
Maintenance and Lubrication
Users should regularly do lubrication for chains and wheels, bearings and speed reducer, etc. And the forming rollers and machine should be kept clean.Transportation and Packing
This kind of machine should adopt sea shipping by container and nude packing.Parameters of the Machine
1. Suitable material: galvanized sheet, etc.2. Suitable thickness: 1.5-3mm, 2-4mm
3. Forming specifications: 2-wave, 3-wave
4. Forming speed: 8-10m/min
5. Main motor power: depending on specific requirements of users
6. Cutting mode: hydraulic mould cutting
7. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
As a professional manufacturer and supplier of guardrail forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (such as double layer forming machine, wall panel forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, bending machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of guardrail forming machine, please contact us.
