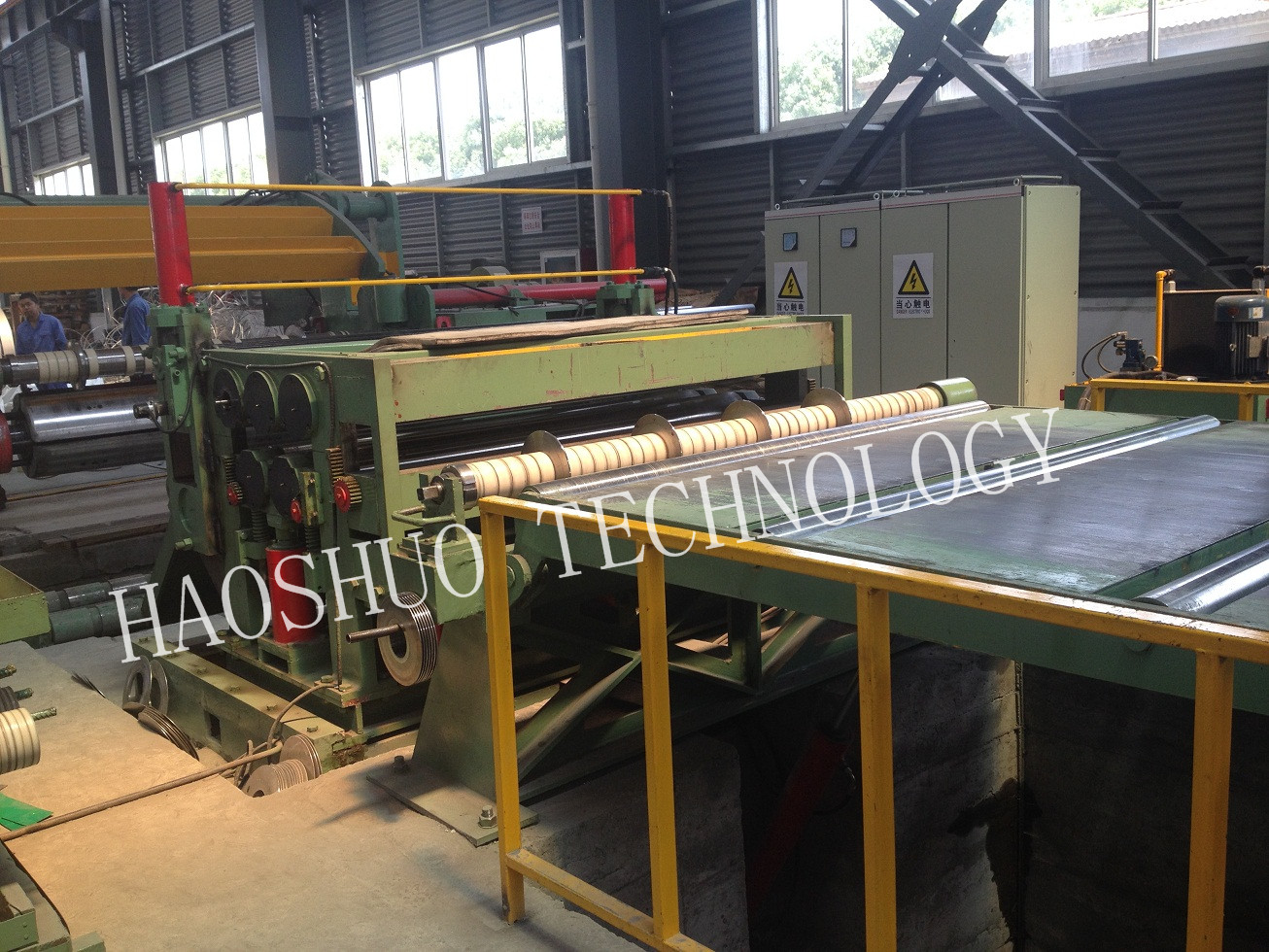

12×2500mm Thick Steel Slitting Line
Description
This thick steel slitting line is used for slitting max.12mm thickness × 2500mm width steel coils into several small coils with required strip width. This line needs space about 40m×10m×5m, including safety area.
Operation and Attention
1. Operator number should be 2 to 5 workers, and other people should keep away from this equipment
2. Around the thick plate slitting machine, there should be yellow caution color to indicate off-limits place
3. Please do well lubrication for gears and chains.
4. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.
5. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
6. Operators shall not stand on the coil when machine running.
7. Do not move coil directly by hand.
8. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.
9. Do not remove or change circuit. In case of any problem, please consult professional technicians.
Work Flow of Thick Steel Slitting Line
Entry coil car dual load hydraulic decoilerguiding device pinch roll & 5-roll leveling machine entry crop shear roll table calibrating & centering slitter scrap winder loop bridge and buffer pit pre-distribution & tensioning machine rewinding machine exit coil car hydraulic control electrical control
Packaging and Transportation:
This thick plate slitting machine should adopt sea shipping by container. If there is no special requirement, this machine usually utilizes nude packaging, with cable wire and wooden block fastening it. All gadgets should be placed in accessory steel box.
Maintenance and Lubrication
1. Check machine units whether loosen or damaged and check electrical parts, hydraulic parts, and pneumatic parts whether abnormal after work finished. If so, should adjust or repair immediately.
2. Check the oil pipes are smooth, regular filling oil. (lubricating list)
3. Cut off main power, clean up machine units after work finished.
4. Regularly inspect machine to ensure proper operation.
Parameters of Thick Steel Slitting Line
| Raw material | hot rolled steel, cold rolled steel, galvanized sheet, etc. |
| Thickness | 3 to 12mm or as per request |
| Width | max.1600/1800/2000/2200/2500mm |
| Max coil weight | 25 to 35 ton |
| Slitting strip | min.80mm |
| Slitting strips | design as per need |
| Slitting tolerance | ±0.4mm |
| Power source | AC380V±10%/50Hz, or as per Buyer’s requirement |
| Main power | about 450kW |
| Machine outline(L×W) | about 40M×10M |
| Total weight | about 120 tons |
